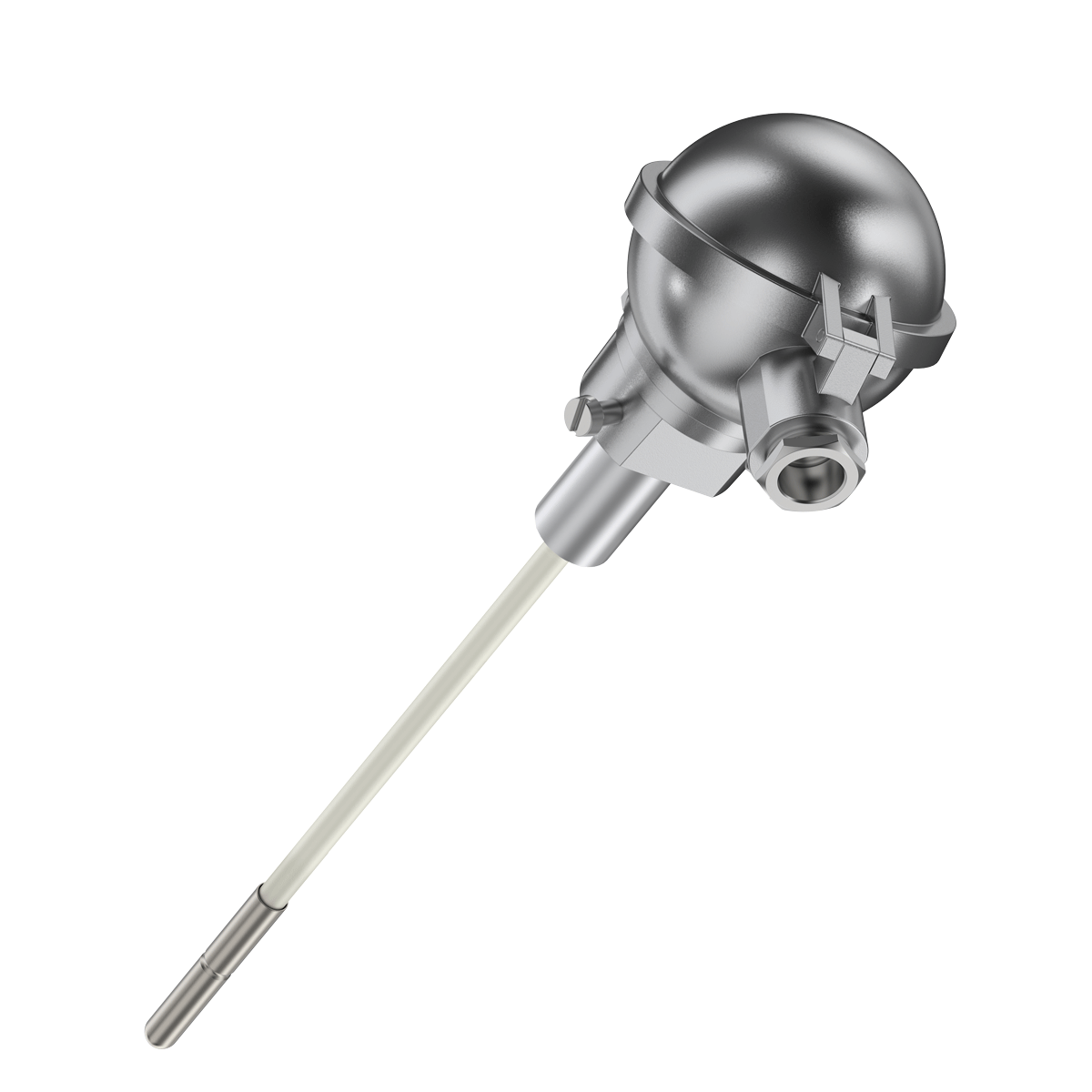

Large thermocouple model AKK similar to DIN EN 50446
straight thermocouple with ceramic protection tube, metallic holding tube, connection head in Form A, high-grade TC and rolled platinum sleeve

Process connection via holding tube with separate stop flange, gas-tight threaded socket or welded-on flange.
Area of application: Glass industry.
Measuring range up to 1600°C depending on thermocouple and alloy of Pt sleeve.
PT ceramic of C 799, preferred diameter 12.7 mm with Pt sleeve Ø 13.7 mm.
1, 2 or 3 thermocouples according to DIN EN 60584-1, with different optional installation heights.
Advantage: Good service life, Pt-PT protected against "falling down" and suitable as matrix measurement for recording the exact temperature distribution directly in the liquid glass.
Recycling the precious metals reduces the cost of replacement.

Downloads

information material

Flyer TC_DE_GB

Technische Dokumentation

Certificates

Online request / Configurator

TC with ceramic protection tube, neck tube, noble TC wire and rolled Platinium tip

length (NL in mm)

Norminal length NL (4 digits) e.g. 0710 = 710 mm

Ceramic protection tube C799

neck tube-Ø

neck tube material

neck tube length (in mm)

with 4 digits e.g. 80 = 0080 mm

ceramic inner tube C799

connection tube ¹⁾

Thermocouple type nach DIN EN 60584-1²⁾

Number of thermocouples

Accuracy class acc. to DIN IEC/EN 60584-1

wire-Ø

insulating rod-Ø C799

platinium sleeve ²⁾

Platinium-sleeve - length

Length 4 digits in mm

Additional

Order number:

Your choice

Your note

Your data

Salutation Mr. Mrs.

Name: ^*

Company: ^*

Street / No.:

Postcode:

Place:

Phone: ^*

email: ^*

Your reference:

7+5= ^*

* Required field

1) Standard ambient temperature -40 up to 100 °C, on request also higher temperatures

2) Thermocouple wire and platinium sleeve will be shown separately and charged for the daily price of precious metals plus all manufacturing costs. Not discountable!
